Browntown, MN, USA

Project Type:

Field Erected Tanks & Piping


We partnered with UFC to build the liquid portion of their 2017 terminal. This large facility services a wide area in the UFC distribution network in southern MN. Here’s what Precision Liquid Construction PLC built:

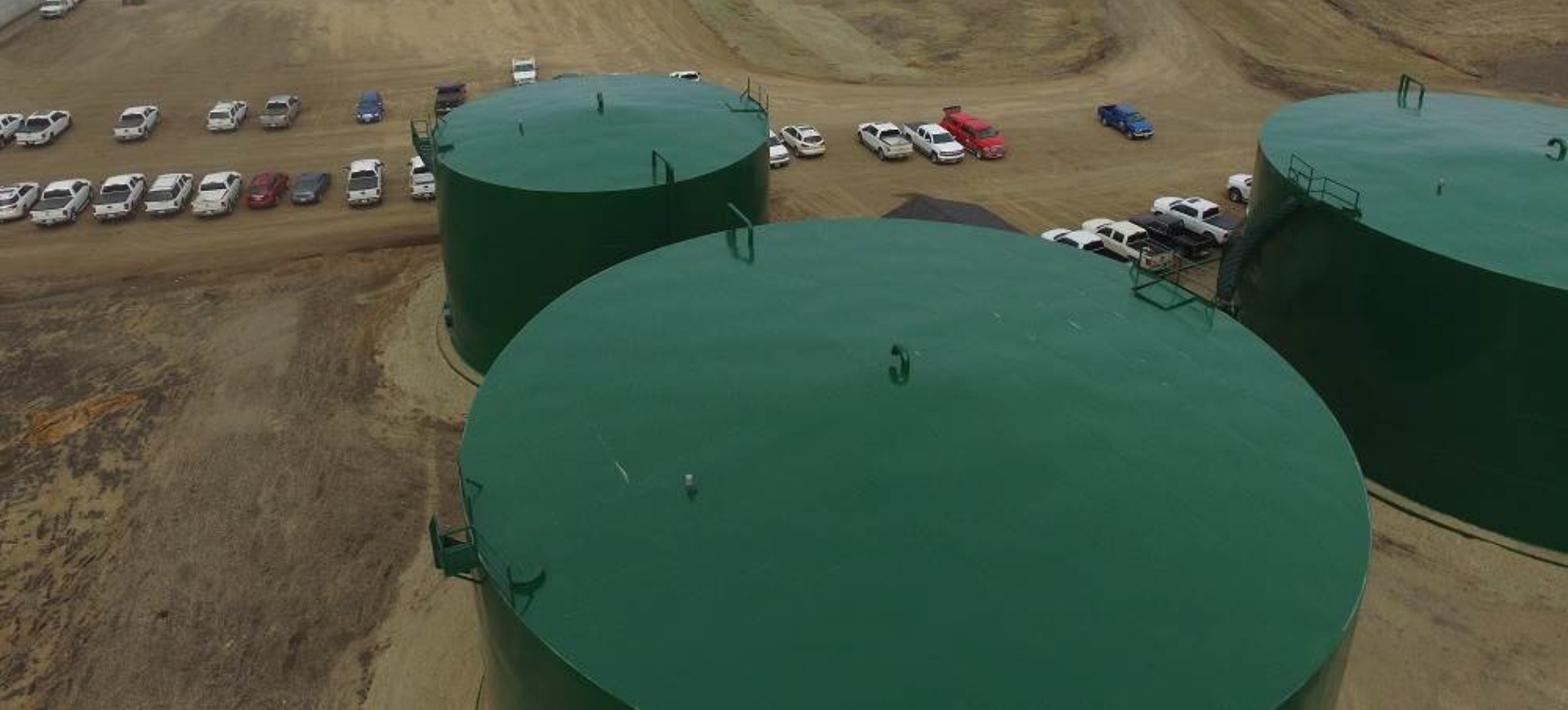

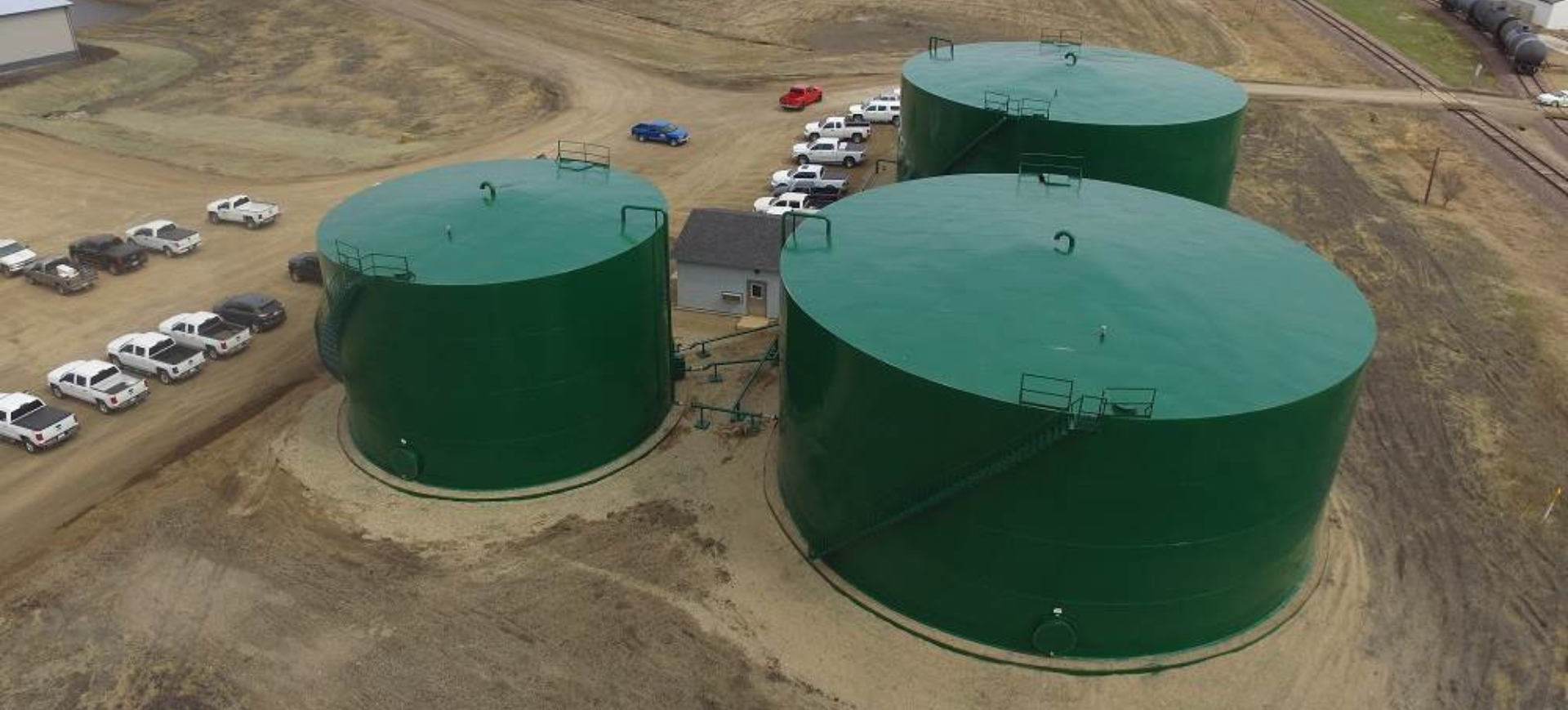

3 Field Erected Storage Tanks with Rail and Truck Unloading

  • Two 1,000,000 gallon tanks
  • One 500,000 gallon tank
  • 6 car railheader


EPS Foam Core Building with Two Major Sections

  • Load out bay: 100' x 76' long
  • Warehouse: 152' x 116' long
  • Two load out bays, to include a 24/7 bay
  • All concrete work with the building


Stainless Steel Chemical Tanks Inside Building

  • Eight 10,000 gallon tanks; 304 alloy tanks
  • Two 30,000 gallon tanks; 316 alloy tanks


Liquid Fertilizer

  • Two 20,000 gallon fiberglass tanks
  • Two 30,000 gallon mild steel tanks


Inside Water/Rinsate System

  • One 3,000 gallon poly fresh water tank
  • One 3,00 gallon poly rinstate tank

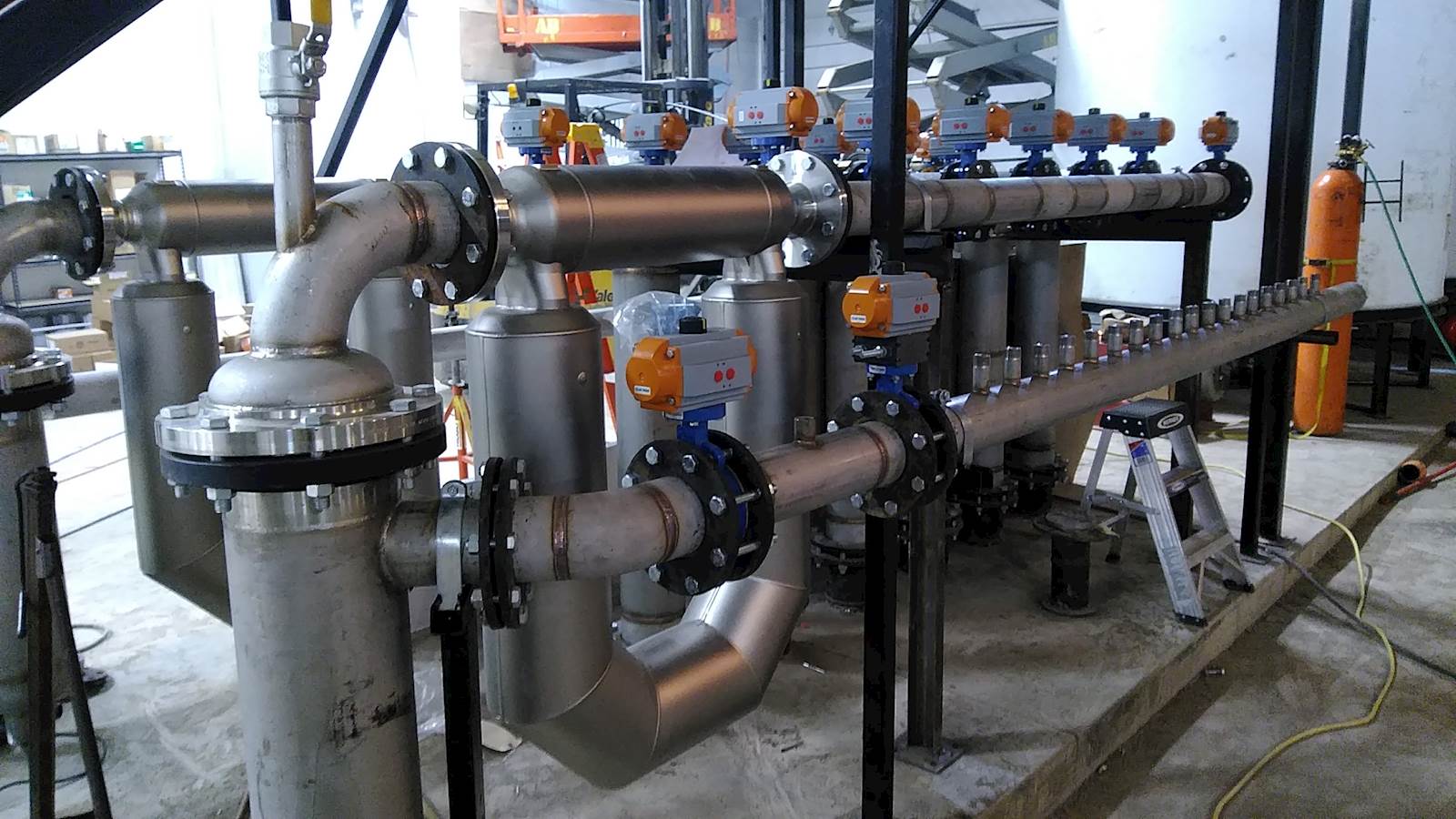

  • All inside stainless steel piping to and from chemical tanks to load out bays
  • Stainless steel manifolds
  • Installed mass meters and all air actuated valves
  • Underground HDPE pipe from field erected tanks to load out building 6" inside 8" for containment - approximately 400'
